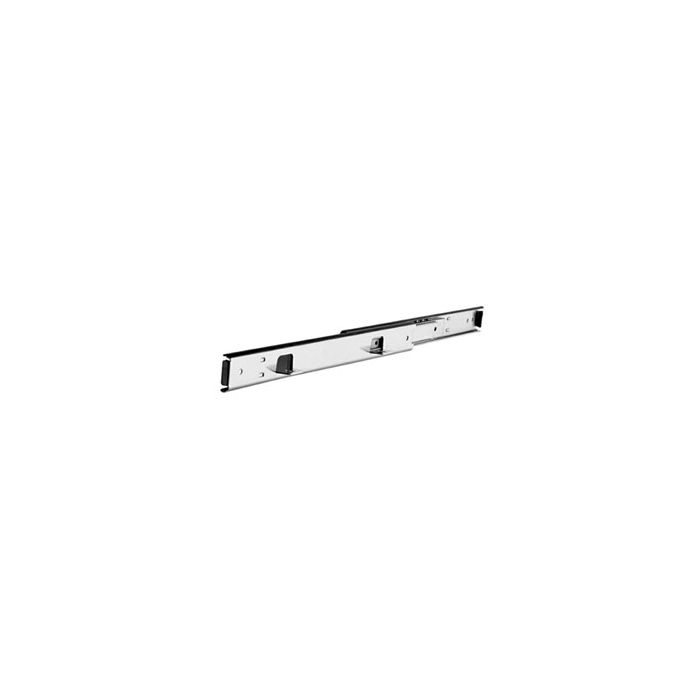

Accuride 322 Drawer Slide | 24"L, .88" Over-Travel, 100lb, Side Mount | Polybagged | Clear Zinc | C 322-24D

SKU
A322-24-01
Accuride Light-Duty Slide, Series: 322, 24 in L Slide, 24.88 in L Travel, Closure Type: Manual, Outer Member Tabs Mount, Glide Mechanism: Steel Ball Bearing, 0.88 in Over-Travel, Full Extension, Disconnect Method: Non-Disconnect, Side Space: 0.76 in, 48.88 in L Extended, 1.38 in OAH, 0.76 in W Overall, 100 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 16 in W, Includes: Mounting Screws, Packaging Quantity: 5/Box
More Information
Manufacturer SKU C 322-24D
Brand Accuride
Color/Finish Clear Zinc
Series 322
Disconnect Method Non-Disconnect
Glide Mechanism Steel Ball Bearing
Overall Height 1.38
Overall Width 0.76
Slide Length 24
Travel Length 24.88
Extended Length 48.88
Side Space 0.76"
Material Cold Rolled Steel
Screw Size #8
Includes Mounting Screws
Packaging Quantity 5/Box
Suitable for Drawers Up to 16 in W
Type Light-Duty
Extension Type 0.88 in Over-Travel, Full
Capacity 100
Item Name Slide
