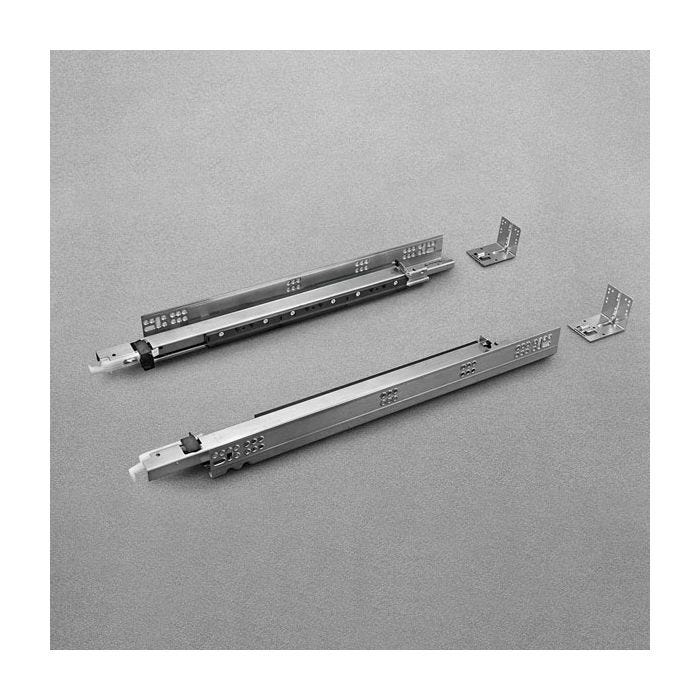

Salice G7U6P457XXB 18" Length (457mm); Full Extension Undermount, Push Touch-to-Open for 1/2"-5/8" Material, Standard Cabinet Member for Face Frame
The F70 Push 18" heavy-duty full extension undermount slide for face frame cabinets features touch opening action with a synchronized mechanism, full-length cabinet members, and will accommodate 12mm (1/2'') to 16mm (5/8") drawer thickness. 170 lb static load capacity (154 lb dynamic) is backed by a lifetime warranty. The F70 Smove for frameless is fully adjustable. Depth and lateral adjustments are integrated in the front clip. Height adjustment is integrated into the slide. Compatible with Lineabox and wood drawer boxes.
! NOTE: Use of rear sockets while mounting to the face frame without blocking out reduces load capacity to 75 lbs.
|Mounting Type||Bottom, Side|
|Load Capacity||170 lb Static, 154 lb Dynamic|
|Slide Extension||Full Extension|
|Side Space||3/16" (5mm)|
