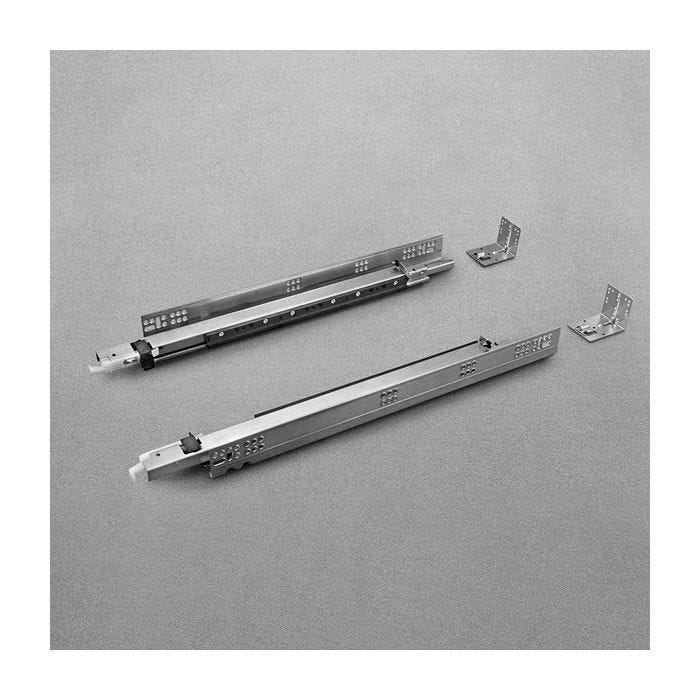

Salice G7U6P533XXB 21" Length (533mm); Full Extension Undermount, Push Touch-to-Open for 1/2"-5/8" Material, Standard Cabinet Member for Face Frame

SKU
SAG7U6P-21-03-FF

The F70 Push 21" heavy-duty full extension undermount slide for face frame cabinets features touch opening action with a synchronized mechanism, full-length cabinet members, and will accommodate 12mm (1/2'') to 16mm (5/8") drawer thickness. 170 lb static load capacity (154 lb dynamic) is backed by a lifetime warranty. The F70 Smove for frameless is fully adjustable. Depth and lateral adjustments are integrated in the front clip. Height adjustment is integrated into the slide. Compatible with Lineabox and wood drawer boxes.

! NOTE: Use of rear sockets while mounting to the face frame without blocking out reduces load capacity to 75 lbs.

More Information
Manufacturer SKU G7U6P533XXB
Brand Salice
Nominal Length 21"
Mounting Type Bottom, Side
Closure Type Manual
Load Capacity 170 lb Static, 154 lb Dynamic
Series F70 Push
Slide Length 544mm
Slide Extension Full Extension
Side Space 3/16" (5mm)
Packaging Quantity 6/Box
