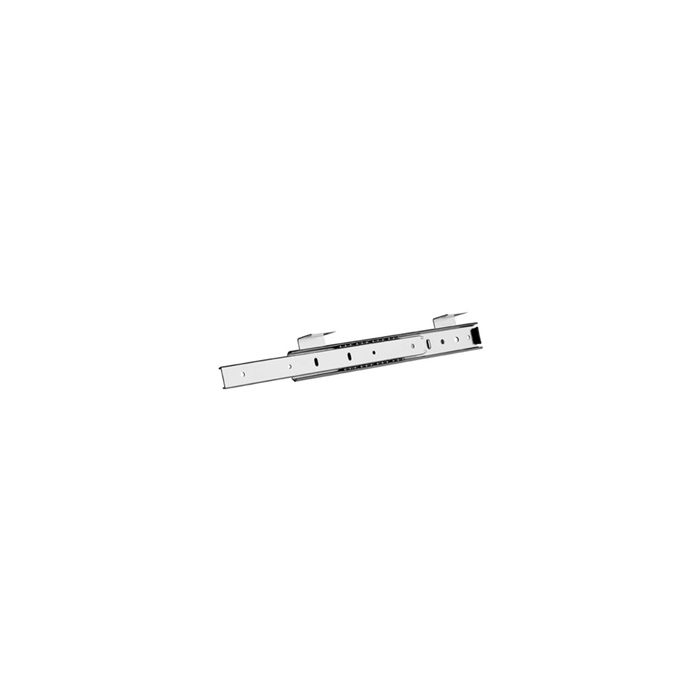

Accuride 2006 Pencil Drawer Slide | 16"L, 3/4 Ext, 45lb | Polybagged | Clear Zinc | C 2006-16D
SKU
A2006-16-01
Accuride Light-Duty Pencil Drawer Slide, Series: 2006, 16 in L Slide, 12 in L Travel, Side, Under Surface Mount, Glide Mechanism: Steel Ball Bearing, 3/4 Extension, Disconnect Method: Friction, Side Space: 0.44 in, 28 in L Extended, 1.94 in OAH, 0.44 in W Overall, 45 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 16 in W, Includes: Mounting Screws, Packaging Quantity: 10/Box
Manufacturer SKU | C 2006-16D |
---|---|
Brand | Accuride |
Color/Finish | Clear Zinc |
Series | 2006 |
Disconnect Method | Friction |
Glide Mechanism | Steel Ball Bearing |
Overall Height | 1.94 |
Overall Width | 0.44 |
Slide Length | 16 |
Travel Length | 12 |
Extended Length | 28 |
Side Space | 0.44" |
Material | Cold Rolled Steel |
Screw Size | #8 |
Includes | Mounting Screws |
Packaging Quantity | 10/Box |
Suitable for | Drawers Up to 16 in W |
Type | Light-Duty |
Extension Type | 3/4 |
Capacity | 45 |
Item Name | Pencil Drawer Slide |
