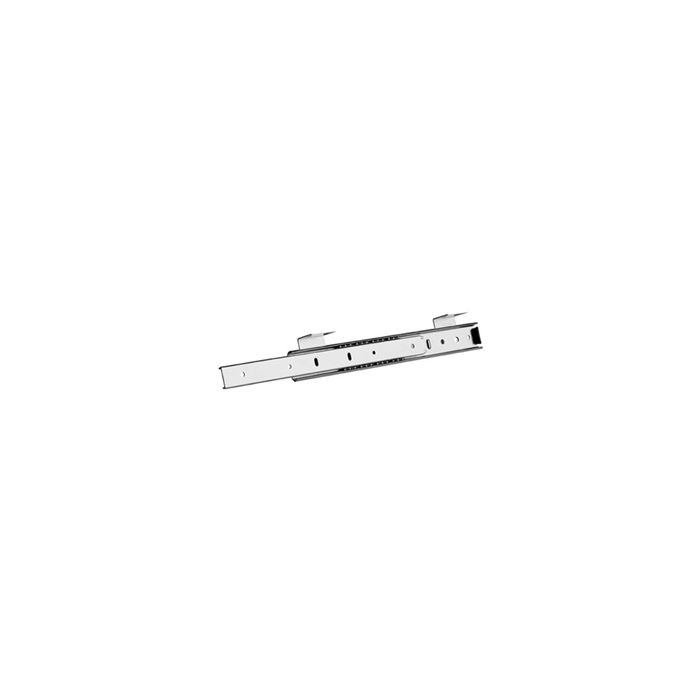

Accuride 2006 Pencil Drawer Slide | 18"L, 3/4 Ext, 45lb | Polybagged | Clear Zinc | C 2006-18D
SKU
A2006-18-01
Accuride Light-Duty Pencil Drawer Slide, Series: 2006, 18 in L Slide, 13-1/2 in L Travel, Side, Under Surface Mount, Glide Mechanism: Steel Ball Bearing, 3/4 Extension, Disconnect Method: Friction, Side Space: 0.44 in, 31-1/2 in L Extended, 1.94 in OAH, 0.44 in W Overall, 45 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 16 in W, Includes: Mounting Screws, Packaging Quantity: 10/Box
| Manufacturer SKU | C 2006-18D |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Zinc |
| Series | 2006 |
| Disconnect Method | Friction |
| Glide Mechanism | Steel Ball Bearing |
| Overall Height | 1.94 |
| Overall Width | 0.44 |
| Slide Length | 18 |
| Travel Length | 13-1/2 |
| Extended Length | 31-1/2 |
| Side Space | 0.44" |
| Material | Cold Rolled Steel |
| Screw Size | #8 |
| Includes | Mounting Screws |
| Packaging Quantity | 10/Box |
| Suitable for | Drawers Up to 16 in W |
| Type | Light-Duty |
| Extension Type | 3/4 |
| Capacity | 45 |
| Item Name | Pencil Drawer Slide |
