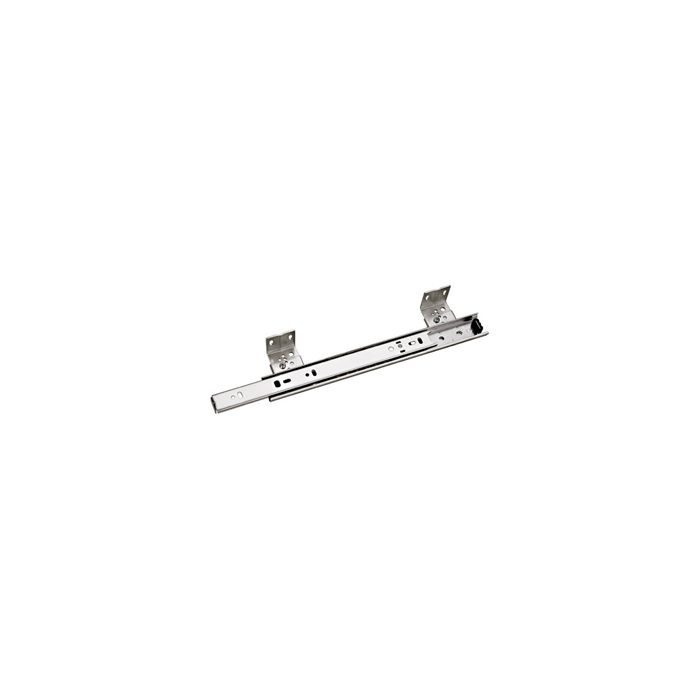

Accuride 2109 Pencil Drawer Slide | Soft Close, 12"L, 3/4 Ext, 75lb | Polybagged | Clear Zinc | C 2109-12D
SKU
A2109-12-01
Accuride Light-Duty Slide, Series: 2109, 12 in L Slide, 8.08 in L Travel, Closure Type: Soft-Close, Suspended Mount, Glide Mechanism: Steel Ball Bearing, 3/4 Extension, Disconnect Method: Lever, Side Space: 1/2 in, 20.08 in L Extended, 2.44 in OAH, 1/2 in W Overall, 75 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 16 in W, Includes: (4) Mounting Brackets, Bracket Mounting Screws and Slide Mounting Screws, Packaging Quantity: 10/Box
| Manufacturer SKU | C 2109-12D |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Zinc |
| Series | 2109 |
| Disconnect Method | Lever |
| Glide Mechanism | Steel Ball Bearing |
| Overall Height | 2.44 |
| Overall Width | 1/2 |
| Slide Length | 12 |
| Travel Length | 8.08 |
| Extended Length | 20.08 |
| Side Space | 1/2" |
| Material | Cold Rolled Steel |
| Screw Size | #8 |
| Includes | (4) Mounting Brackets, Bracket Mounting Screws and Slide Mounting Screws |
| Packaging Quantity | 10/Box |
| Suitable for | Drawers Up to 16 in W |
| Type | Light-Duty |
| Extension Type | 3/4 |
| Capacity | 75 |
| Item Name | Slide |
