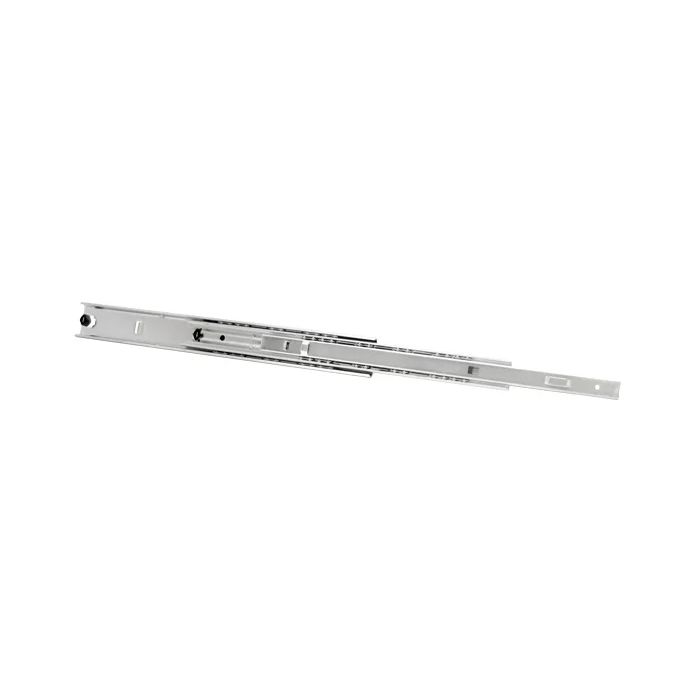

Accuride 2120 Cold Rolled Steel Light-Duty Slide, 3/4 Extension, Pocket/Bayonet Mount, 75 lb, 16 in, Clear Zinc
SKU
A2120-16-03
Accuride Light-Duty Slide, Series: 2120, 16 in L Slide, 11.81 in L Travel, Pocket, Bayonet Mount, Glide Mechanism: Carburized Steel Ball Bearing, 3/4 Extension, Disconnect Method: Lever, Side Space: 1/2 in, 27.81 in L Extended, 1.38 in OAH, 0.05 in W Overall, 75 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Up to 16 in Wide Drawers, Packaging Quantity: 10/Box
| Manufacturer SKU | C 2120-16 |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Zinc |
| Series | 2120 |
| Item Name | Slide |
| Disconnect Method | Lever |
| Glide Mechanism | Carburized Steel Ball Bearing |
| Overall Height | 1.38 |
| Overall Width | 0.05 |
| Slide Length | 16 |
| Travel Length | 11.81 |
| Extended Length | 27.81 |
| Side Space | 1/2" |
| Material | Cold Rolled Steel |
| Screw Size | #8 |
| Packaging Quantity | 10/Box |
| Suitable for | Up to 16 in Wide Drawers |
| Type | Light-Duty |
| Extension Type | 3/4 |
| Capacity | 75 |
