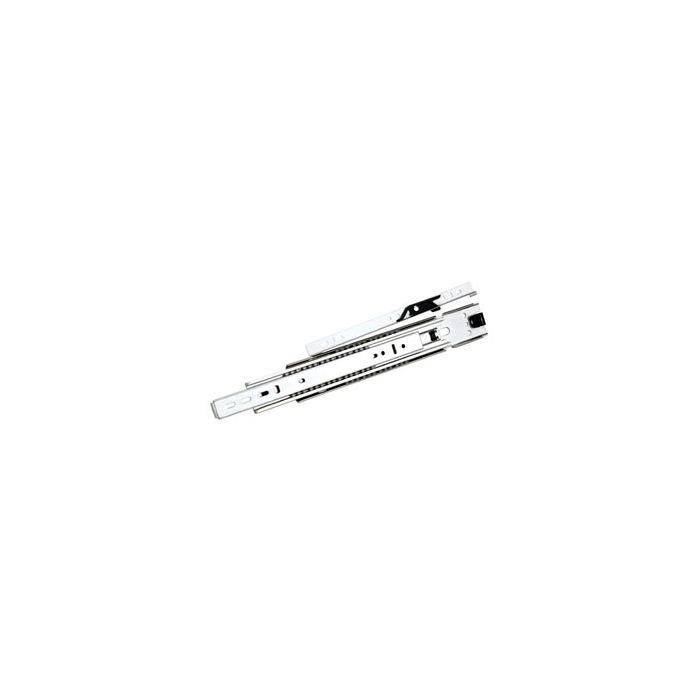

Accuride 3017 Cold Rolled Steel Light-Duty Telescopic Slide, 1 in Over-Travel Extension, Side/Rail Mount, 100 lb, 12 in, Clear Zinc, Distributor Pack

Accuride Light-Duty Telescopic Slide, Series: 3017, 12 in L Slide, 13 in L Travel, Side, Rail Mount, Glide Mechanism: Acetal Polymer Ball Bearing, 1 in Over-Travel Extension, Disconnect Method: Rail, Side Space: 1/2 in, 25 in L Extended, 2.79 in OAH, 1/2 in W Overall, 100 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 24 in W, Includes: Handed Rails, Mounting Screws, Packaging Quantity: 10/Box
More Information
Manufacturer SKU C 3017-12D
Brand Accuride
Color/Finish Clear Zinc
Series 3017
Item Name Slide
Disconnect Method Rail
Glide Mechanism Acetal Polymer Ball Bearing
Overall Height 2.79
Overall Width 1/2
Slide Length 12
Travel Length 13
Extended Length 25
Side Space 1/2"
Material Cold Rolled Steel
Screw Size #8
Includes Handed Rails, Mounting Screws
Packaging Quantity 10/Box
Suitable for Drawers Up to 24 in W
Type Light-Duty, Telescopic
Extension Type 1 in Over-Travel
Capacity 100
