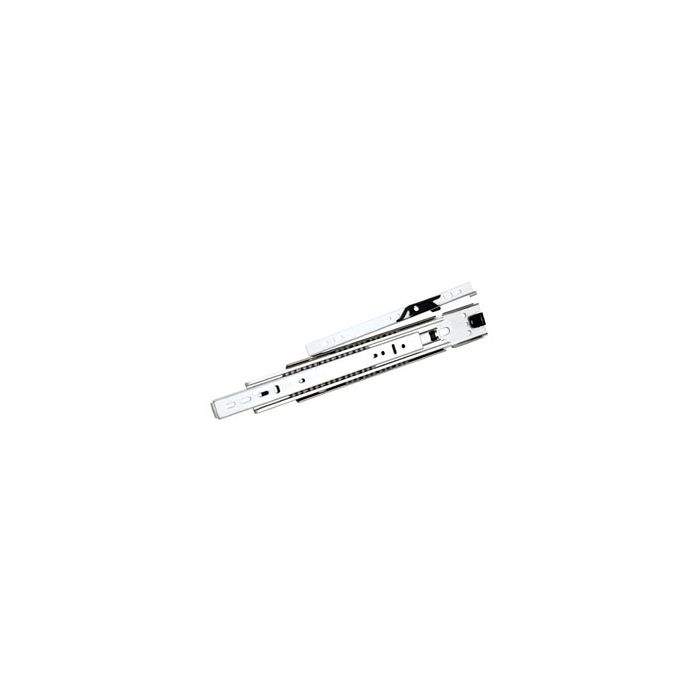

Accuride 3017 Drawer Slide | 18"L, 1" Over-Travel, 110lb | Polybagged | Clear Zinc | C 3017-18D
SKU
A3017-18-01
Accuride Light-Duty Telescopic Slide, Series: 3017, 18 in L Slide, 19 in L Travel, Side, Rail Mount, Glide Mechanism: Acetal Polymer Ball Bearing, 1 in Over-Travel Extension, Disconnect Method: Rail, Side Space: 1/2 in, 37 in L Extended, 2.79 in OAH, 1/2 in W Overall, 100 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 24 in W, Includes: Handed Rails, Mounting Screws, Packaging Quantity: 10/Box
Manufacturer SKU | C 3017-18D |
---|---|
Brand | Accuride |
Color/Finish | Clear Zinc |
Series | 3017 |
Disconnect Method | Rail |
Glide Mechanism | Acetal Polymer Ball Bearing |
Overall Height | 2.79 |
Overall Width | 1/2 |
Slide Length | 18 |
Travel Length | 19 |
Extended Length | 37 |
Side Space | 1/2" |
Material | Cold Rolled Steel |
Screw Size | #8 |
Includes | Handed Rails, Mounting Screws |
Packaging Quantity | 10/Box |
Suitable for | Drawers Up to 24 in W |
Type | Light-Duty, Telescopic |
Extension Type | 1 in Over-Travel |
Capacity | 100 |
Item Name | Slide |
