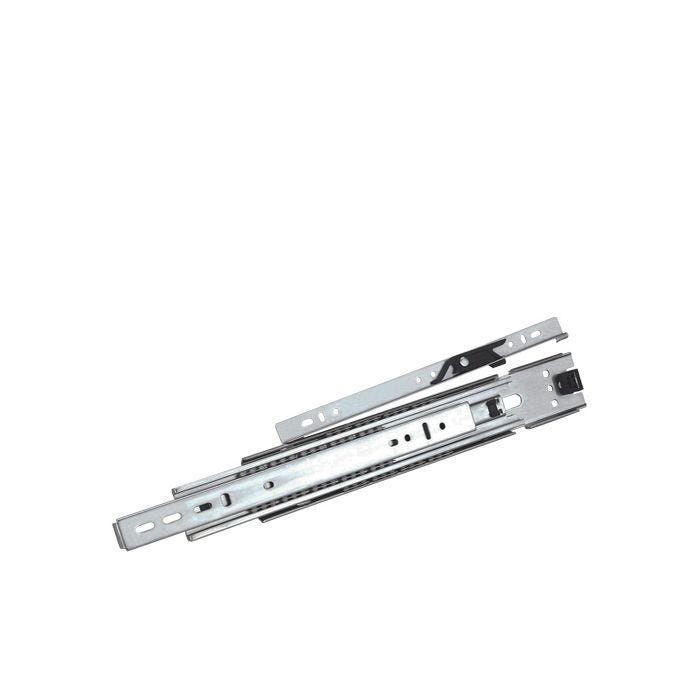

Accuride 3017 Cold Rolled Steel Light-Duty Telescopic Slide, 1 in Over-Travel Extension, Side/Rail Mount, 100 lb, 20 in, Clear Zinc, Bulk Pack
SKU
A3017-20-03
Accuride Light-Duty Telescopic Slide, Series: 3017, 20 in L Slide, 21 in L Travel, Side, Rail Mount, Glide Mechanism: Acetal Polymer Ball Bearing, 1 in Over-Travel Extension, Disconnect Method: Rail, Side Space: 1/2 in, 41 in L Extended, 2.79 in OAH, 1/2 in W Overall, 100 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 24 in W, Includes: Rails, Packaging Quantity: 5/Box
| Manufacturer SKU | C 3017-20P |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Zinc |
| Series | 3017 |
| Item Name | Slide |
| Disconnect Method | Rail |
| Glide Mechanism | Acetal Polymer Ball Bearing |
| Overall Height | 2.79 |
| Overall Width | 1/2 |
| Slide Length | 20 |
| Travel Length | 21 |
| Extended Length | 41 |
| Side Space | 1/2" |
| Material | Cold Rolled Steel |
| Screw Size | #8 |
| Includes | Rails |
| Packaging Quantity | 5/Box |
| Suitable for | Drawers Up to 24 in W |
| Type | Light-Duty, Telescopic |
| Extension Type | 1 in Over-Travel |
| Capacity | 100 |
