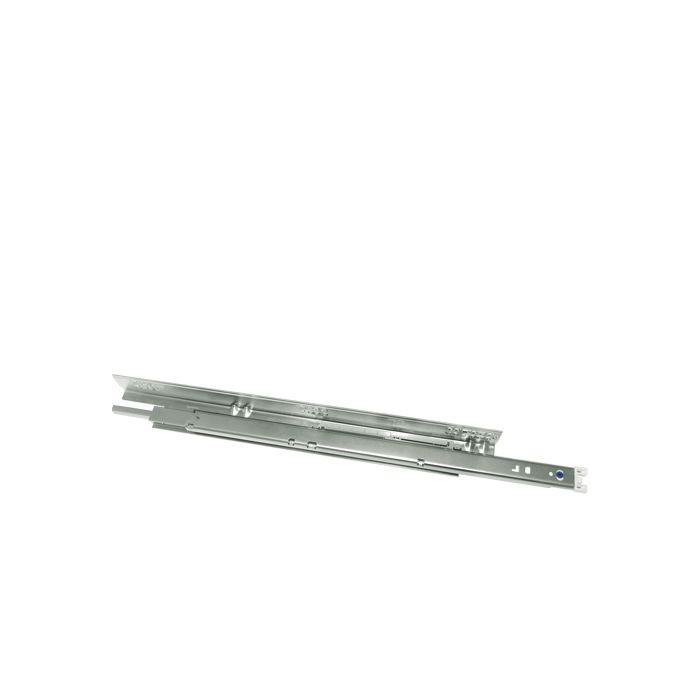

Accuride 3135EC Eclipse Easy-Close Undermount Slide | Soft Close, 20"L, Full Ext, 100lb | Polybagged | C 3135-20ECD
SKU
A3135EC-20-01
Accuride ECLIPSE Easy-Close Premium-Grade Slide, Series: 3135EC, 20 in L Slide, 19-1/2 in L Travel, Closure Type: Soft-Close, Undermount Mount, Glide Mechanism: Ball Bearing, Rollers, Full Extension, Disconnect Method: Lever, 39-1/2 in L Extended, 1.88 in OAH, 2.24 in W Overall, 100 lb Capacity, Screw Size: #6 x 5/8 in, #8 x 5/8 in, Cold Rolled Steel, Clear Electro Zinc, Includes: (6) #8 x 5/8 in Phillips Flat Head Screws, (2) Standard Horizontal Disconnect Levers and (4) #6 x 5/8 in Phillips Pan Head Screws
| Manufacturer SKU | C 3135-20ECD |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Electro Zinc |
| Series | 3135EC |
| Disconnect Method | Lever |
| Glide Mechanism | Ball Bearing, Rollers |
| Overall Height | 1.88 |
| Overall Width | 2.24 |
| Slide Length | 20 |
| Travel Length | 19-1/2 |
| Extended Length | 39-1/2 |
| Material | Cold Rolled Steel |
| Screw Size | #6 x 5/8 in, #8 x 5/8 in |
| Includes | (6) #8 x 5/8 in Phillips Flat Head Screws, (2) Standard Horizontal Disconnect Levers and (4) #6 x 5/8 in Phillips Pan Head Screws |
| Type | Easy-Close, Premium-Grade |
| Extension Type | Full |
| Capacity | 100 |
| Item Name | Slide |
