Accuride 3160EC Eclipse Easy-Close Undermount Slide | Soft Close, 20"L, Full Ext, 100lb | Polybagged | C 3160-20ECD
SKU
A3160-20EC-01

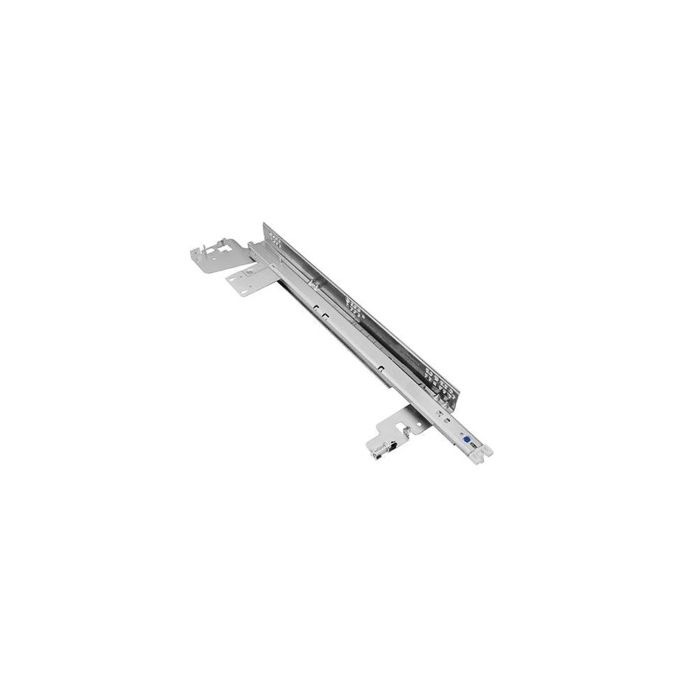

Accuride ECLIPSE Commercial-Grade Easy-Close Slide, Series: 3160EC, 20 in L Slide, 19-1/2 in L Travel, Closure Type: Soft-Close, Undermount Mount, Glide Mechanism: Ball Bearing, Rollers, Full Extension, Disconnect Method: Lever, 47-1/2 in L Extended, 1.88 in OAH, 6.19 in W Overall, 100 lb Capacity, Screw Size: #6 x 5/8 in, #8 x 5/8 in, Cold Rolled Steel, Clear Electro Zinc, For: 30 - 40 in Ultra-Wide Drawers, Includes: (6) #8 x 5/8 in Phillips Flat Head Screws, (2) Standard Horizontal and Vertical Disconnect Levers and (4) #6 x 5/8 in Phillips Pan Head Screws
| Manufacturer SKU | C 3160-20ECD |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Electro Zinc |
| Series | 3160EC |
| Disconnect Method | Lever |
| Glide Mechanism | Ball Bearing, Rollers |
| Overall Height | 1.88 |
| Overall Width | 6.19 |
| Slide Length | 20 |
| Travel Length | 19-1/2 |
| Extended Length | 47-1/2 |
| Material | Cold Rolled Steel |
| Screw Size | #6 x 5/8 in, #8 x 5/8 in |
| Includes | (6) #8 x 5/8 in Phillips Flat Head Screws, (2) Standard Horizontal and Vertical Disconnect Levers and (4) #6 x 5/8 in Phillips Pan Head Screws |
| Suitable for | 30 - 40 in Ultra-Wide Drawers |
| Type | Commercial-Grade, Easy-Close |
| Extension Type | Full |
| Capacity | 100 |
| Item Name | Slide |
