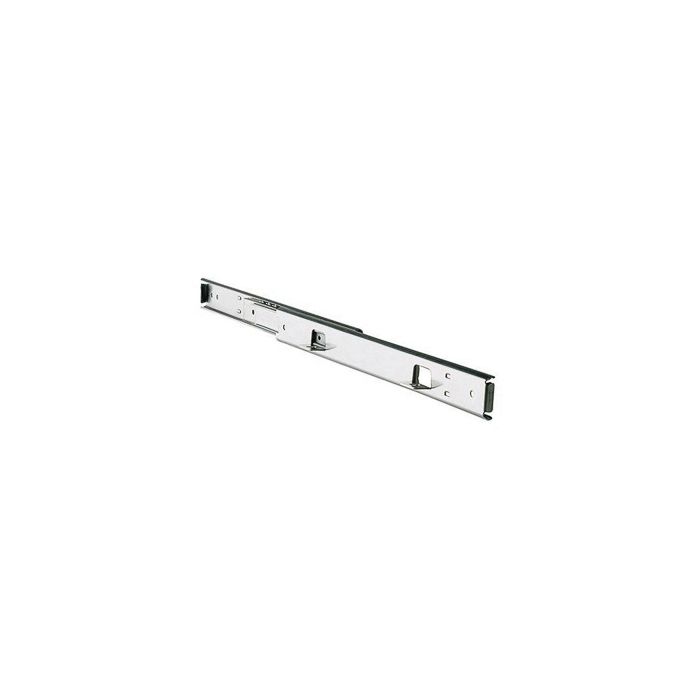

Accuride 322 Drawer Slide | 12"L, .88" Over-Travel, 100lb, Side Mount | Bulk Pack| Clear Zinc | C 322-12
SKU
A322-12-03
Accuride Light-Duty Slide, Series: 322, 12 in L Slide, 12.88 in L Travel, Closure Type: Manual, Outer Member Tabs Mount, Glide Mechanism: Steel Ball Bearing, 0.88 in Over-Travel, Full Extension, Disconnect Method: Non-Disconnect, Side Space: 0.76 in, 24.88 in L Extended, 1.38 in OAH, 0.76 in W Overall, 100 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 16 in W, Packaging Quantity: 10/Box
| Manufacturer SKU | C 322-12 |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Zinc |
| Series | 322 |
| Disconnect Method | Non-Disconnect |
| Glide Mechanism | Steel Ball Bearing |
| Overall Height | 1.38 |
| Overall Width | 0.76 |
| Slide Length | 12 |
| Travel Length | 12.88 |
| Extended Length | 24.88 |
| Side Space | 0.76" |
| Material | Cold Rolled Steel |
| Screw Size | #8 |
| Packaging Quantity | 10/Box |
| Suitable for | Drawers Up to 16 in W |
| Type | Light-Duty |
| Extension Type | 0.88 in Over-Travel, Full |
| Capacity | 100 |
| Item Name | Slide |
