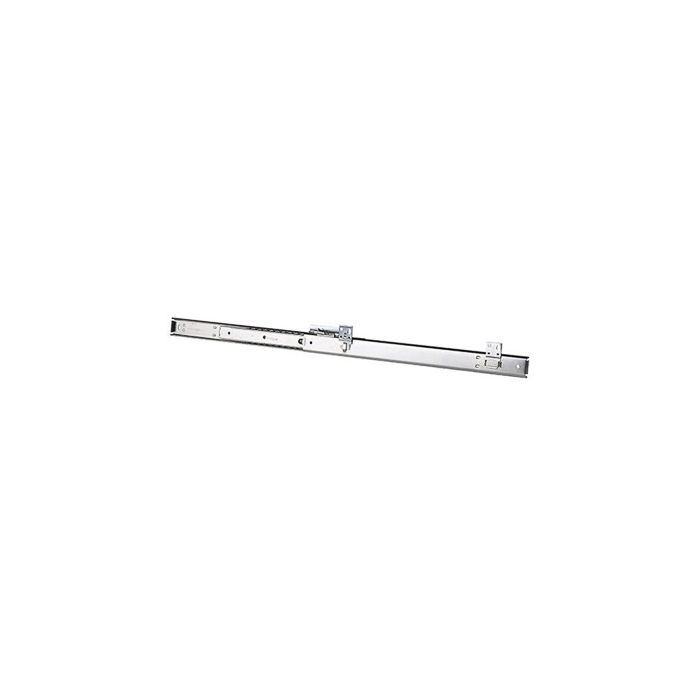

Accuride 340 Cold Rolled Steel Light-Duty Slide with Butcher-Block and Lock-Out, Full Extension, Bracket/Pocket Mount, 110 lb, 16 in, Clear Zinc

Accuride Light-Duty Slide with Butcher-Block and Lock-Out, Series: 340, 16 in L Slide, 15.88 in L Travel, Bracket, Pocket Mount, Glide Mechanism: Steel Ball Bearing, Full Extension, Disconnect Method: Bracket, Pocket, Side Space: 0.87 in, 31.88 in L Extended, 2.18 in OAH, 0.87 in W Overall, 110 lb Capacity, Screw Size: #8, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 18 in W, Packaging Quantity: 20/Box
More Information
Manufacturer SKU C 340-249-20
Brand Accuride
Color/Finish Clear Zinc
Series 340
Item Name Slide with Butcher-Block and Lock-Out
Disconnect Method Bracket, Pocket
Glide Mechanism Steel Ball Bearing
Overall Height 2.18
Overall Width 0.87
Slide Length 16
Travel Length 15.88
Extended Length 31.88
Side Space 0.87"
Material Cold Rolled Steel
Screw Size #8
Packaging Quantity 20/Box
Suitable for Drawers Up to 18 in W
Type Light-Duty
Extension Type Full
Capacity 110
