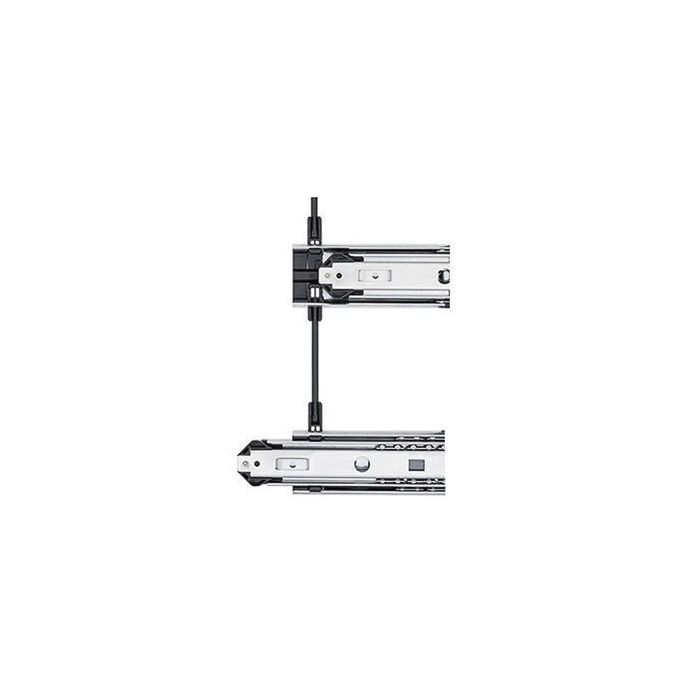

Accuride 3641 Interlock Slide | 16"L, 1" Over-Travel Ext, 180lb | Clear Zinc | C 3641-16
SKU
A3641-16
Accuride Heavy-Duty Interlock Slide, Series: 3641, 16 in L Slide, 17 in L Travel, Pocket, Rail Mount, Glide Mechanism: Steel Ball Bearing, 1 in Over-Travel Extension, Disconnect Method: Pocket, Rail, Side Space: 0.89 in, 33 in L Extended, 2.09 in OAH, 0.89 in W Overall, 180 lb Capacity, Screw Size: #10 mm x 82 deg, 6 mm x 10 mm, #8, Cold Rolled Steel, Clear Zinc, For: Drawer Height Greater Than 3-1/2 in, Packaging Quantity: 10/Box
Manufacturer SKU | C 3641-16 |
---|---|
Brand | Accuride |
Color/Finish | Clear Zinc |
Series | 3641 |
Disconnect Method | Pocket, Rail |
Glide Mechanism | Steel Ball Bearing |
Overall Height | 2.09 |
Overall Width | 0.89 |
Slide Length | 16 |
Travel Length | 17 |
Extended Length | 33 |
Side Space | 0.89" |
Material | Cold Rolled Steel |
Screw Size | #10 mm x 82 deg, 6 mm x 10 mm, #8 |
Packaging Quantity | 10/Box |
Suitable for | Drawer Height Greater Than 3-1/2 in |
Type | Heavy-Duty, Interlock |
Extension Type | 1 in Over-Travel |
Capacity | 180 |
Item Name | Slide |
