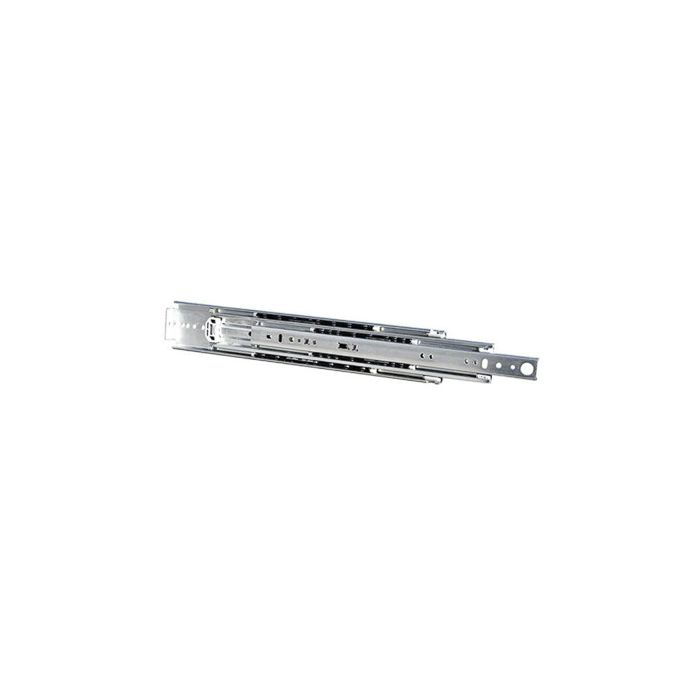

Accuride 9301E Drawer Slide | 24"L, Full Ext, 600lb, Side Mount | Bulk Pack | Clear Zinc | C 9301-E24P
SKU
A9301E-24-03
Accuride Heavy-Duty Slide, Series: 9301E, 24 in L Slide, 24 in L Travel, Closure Type: Conventional, Flat, Side Mount, Glide Mechanism: Ball Bearing, Full Extension, Disconnect Method: Non-Disconnect, Side Space: 3/4 in, 48 in L Extended, 3 in OAH, 3/4 in W Overall, 600 lb Capacity, Screw Size: 1/4 in, #10, M6, M5, Cold Rolled Steel, Clear Zinc, For: Drawers Up to 42 in W with Slide Lengths Up to 60 in, Packaging Quantity: 2/Box
| Manufacturer SKU | C 9301-E24P |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Zinc |
| Series | 9301E |
| Disconnect Method | Non-Disconnect |
| Glide Mechanism | Ball Bearing |
| Overall Height | 3 |
| Overall Width | 3/4 |
| Slide Length | 24 |
| Travel Length | 24 |
| Extended Length | 48 |
| Side Space | 3/4" |
| Material | Cold Rolled Steel |
| Screw Size | 1/4 in, #10, M6, M5 |
| Packaging Quantity | 2/Box |
| Suitable for | Drawers Up to 42 in W with Slide Lengths Up to 60 in |
| Type | Heavy-Duty |
| Extension Type | Full |
| Capacity | 600 |
| Item Name | Slide |
