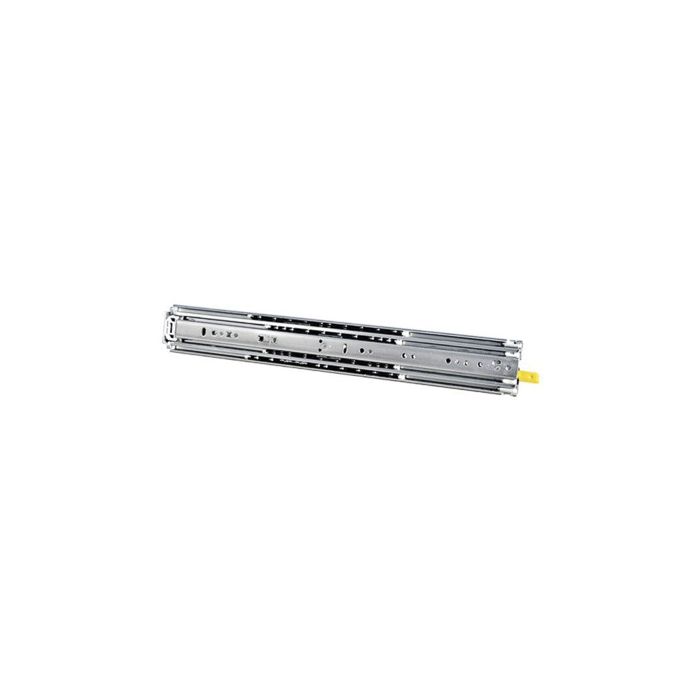

Accuride 9308E Drawer Slide | Lock-In/Lock Out, 18"L, Full Ext, 600lb, Side Mount | Left | Clear Zinc | C 9308-E18-L
SKU
A9308E-18-L
Accuride Extra Heavy-Duty Left Hand Lock-In/Lock-Out Slide, Series: 9308E, 18 in L Slide, 18 in L Travel, Side Mount, Glide Mechanism: Ball Bearing, Full Extension, Disconnect Method: Non-Disconnect, Side Space: 3/4 in, 36 in L Extended, 3 in OAH, 3/4 in W Overall, 600 lb Capacity, Screw Size: 1/4 in, #10, M6, M5, Cold Rolled Steel, Clear Zinc, Includes: (1) Left-Hand Slide, Packaging Quantity: 8/Box
| Manufacturer SKU | C 9308-E18-L |
|---|---|
| Brand | Accuride |
| Color/Finish | Clear Zinc |
| Series | 9308E |
| Disconnect Method | Non-Disconnect |
| Glide Mechanism | Ball Bearing |
| Overall Height | 3 |
| Overall Width | 3/4 |
| Slide Length | 18 |
| Travel Length | 18 |
| Extended Length | 36 |
| Side Space | 3/4" |
| Material | Cold Rolled Steel |
| Screw Size | 1/4 in, #10, M6, M5 |
| Includes | (1) Left-Hand Slide |
| Packaging Quantity | 8/Box |
| Type | Extra Heavy-Duty, Left Hand, Lock-In/Lock-Out |
| Extension Type | Full |
| Capacity | 600 |
| Item Name | Slide |
