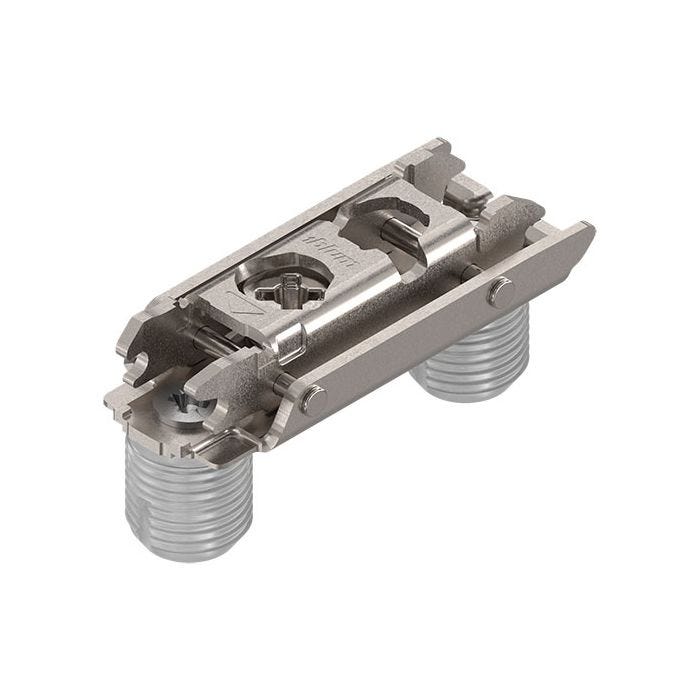

Blum CLIP Cam Adjustable In-Line Mounting Plate | 0mm | Stamped | ∅10mm Press-In Dowels | Nickel | 177H3100
SKU
B177H-310
mounting plate 177H3100
mounting plate system: CLIP
mounting plate shape: in-line
spacing: 0 mm
material: steel
surface: nickel-plated
bottom part surface: nickel-plated
mounting: knock-in
distance cabinet front edge to first mounting location: 20 mm
diameter of mounting holes: 10 mm
boring depth of mounting holes: 11.5 mm
mounting plates height adjustment: with cam
mounting plate system: CLIP
mounting plate shape: in-line
spacing: 0 mm
material: steel
surface: nickel-plated
bottom part surface: nickel-plated
mounting: knock-in
distance cabinet front edge to first mounting location: 20 mm
diameter of mounting holes: 10 mm
boring depth of mounting holes: 11.5 mm
mounting plates height adjustment: with cam
| Manufacturer SKU | 177H3100 |
|---|---|
| Brand | Blum |
| Mounting Type | Knock-In |
| Series | AVENTOS HK-XS, CLIP, CLIP top, AVENTOS HK-S |
| Height | 8.5 |
| Material | Steel |
| Packaging Quantity | 500/Box |
| Suitable for | CLIP Top Hinges |
| Type | Horizontal |
| Item Name | Cam Mounting Plate |
