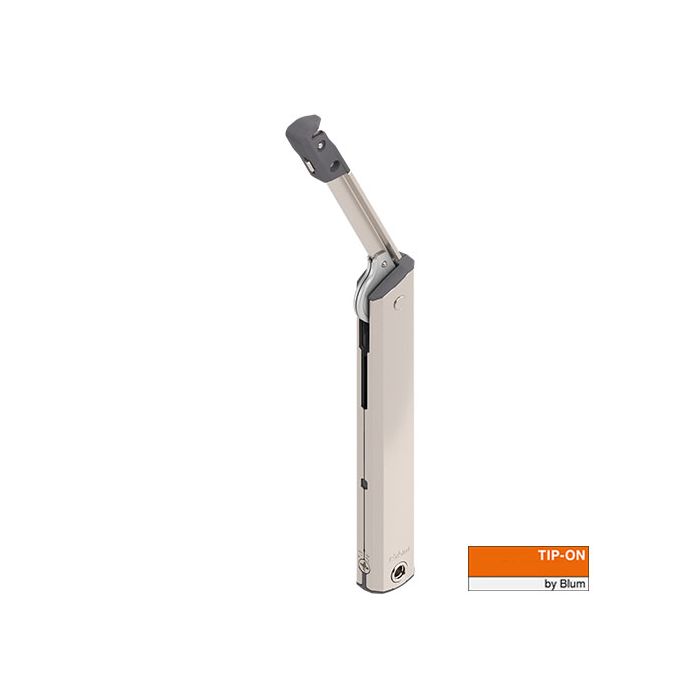

Blum AVENTOS HK-XS Lift Mechanism | Power Factor 44 to 106 | TIP-ON | 20K1301T

Blum's AVENTOS HK-XS is a door system ideal for small applications in wall cabinets, tall cabinets, and over the refrigerator. TIP-ON mechanical touch open ready with CLIP top free swing hinges. A light touch is all that's needed to open doors. Please note that additional TIP-ON components will need to be ordered to complete the HK top system for installation.

AVENTOS HK-XS will accommodate cabinet heights from 9-3/8" (238mm) to 24" (610mm). An inside depth of at least 4-7/8" (125mm) is recommended, though an inside cabinet depth of 3-7/8" (100mm) or more is possible if you use a special drilling position.

Includes:

• (1) Lift mechanism, TIP-ON ready

Requires:

• Cabinet mounting plate
• Door mounting plate
• CLIP top free swing hinges
• Hinge mounting plates
• TIP-ON set (adapter plates are optional)
