Blum AVENTOS HK top Lift Mechanism Set | Power Factor 80 to 240 | TIP-ON Ready | Wood Screws | 22K2500T
SKU
B22K-2500-HK-TP
Blum's AVENTOS HK top is a door system ideal for small applications in wall cabinets, tall cabinets, and over the refrigerator. TIP-ON mechanical touch open ready. A light touch is all that's needed to open doors. Please note that additional TIP-ON components will need to be ordered to complete the HK top system for installation.

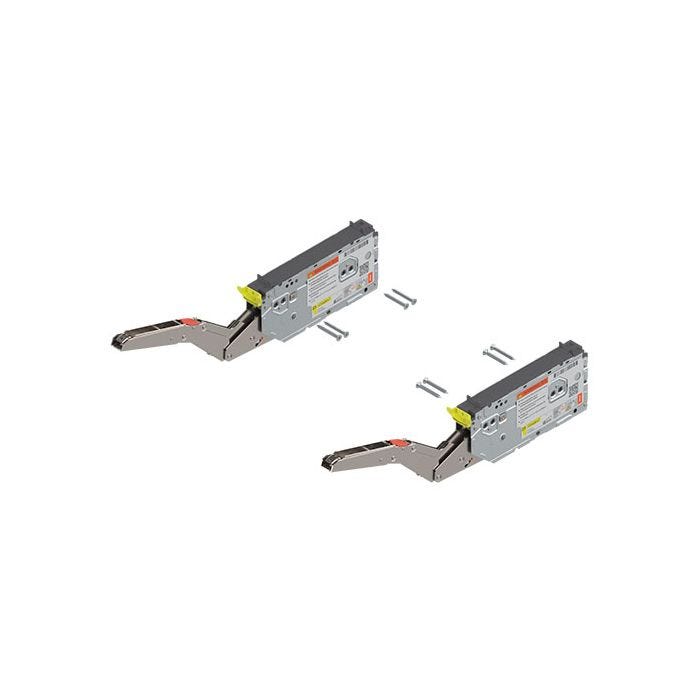

AVENTOS HK top will accommodate cabinet heights from 8" (205mm) to 24" (610mm), and cabinet widths up to 72" (1828mm). An inside depth of at least 10-9/32" (261mm) is required. Set includes (2) symmetrical lift mechanism with positioning system, (8) Ø4mm x 35mm wood screws.
| Manufacturer SKU | 22K2500T |
|---|---|
| Brand | Blum |
| Series | AVENTOS HK top |
| Includes | (8) #7 x 35 mm Wood Screws |
| Item Name | Lift Mechanism Set |
| Power Factor | 80 - 240 |
| Suitable for | Thin Fronts, Wooden, Wide/Narrow Aluminum Frame Fronts Door with Tip-On Closing System |
