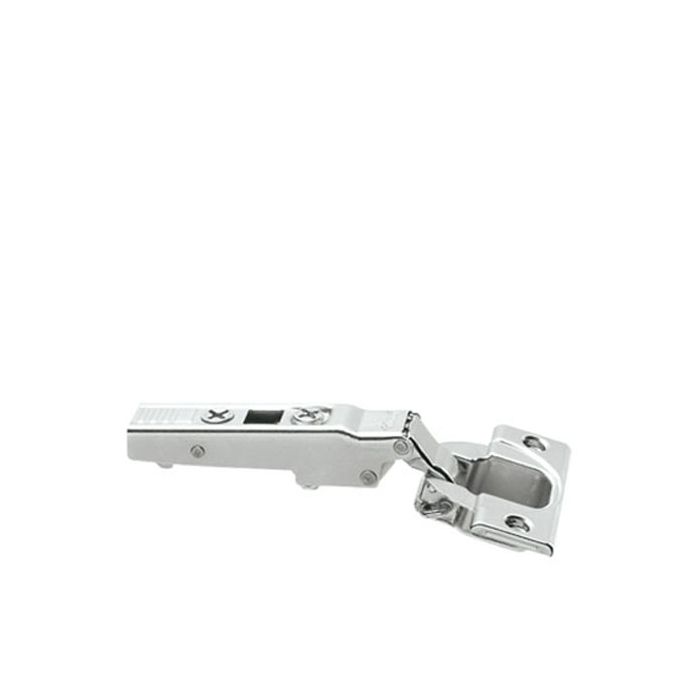

Blum CLIP top 110°+ Cabinet Hinge | Straight Arm | Self-Close | Screw-On | Nickel | 73T3550
SKU
B73T-355
Throw open the doors for Blum's proven classic. CLIP top stands for enhanced adjustment and assembly ease, trustworthy function and attractive design. Every door equipped with Blum hinges opens and closes with reliable ease. Blum Concealed Hinge, Series: CLIP top, Overlay: Full, Maximum Overlay: 22 mm, Screw-On Mount, 26 mm THK Door, Range of Motion: 110+ deg, Closure Type: Self-Close, Hinge Arm: Straight, 13 mm D Cup, 35 mm Dia Cup, Steel, Nickel-Plated, Packaging Quantity: 250/Box
| Manufacturer SKU | 73T3550 |
|---|---|
| Brand | Blum |
| Hinge Arm | Straight |
| Closure Type | Self-Close |
| Mounting Type | Screw-On |
| Range of Motion | 110°+ |
| Finish | Nickel-Plated |
| Overlay | Full Overlay |
| Maximum Overlay | 22 |
| Door Thickness | 26 |
| Series | CLIP top |
| Cup Depth | 13 |
| Cup Diameter | 35 |
| Material | Steel |
| Packaging Quantity | 250/Box |
| Item Name | Concealed Hinge |
