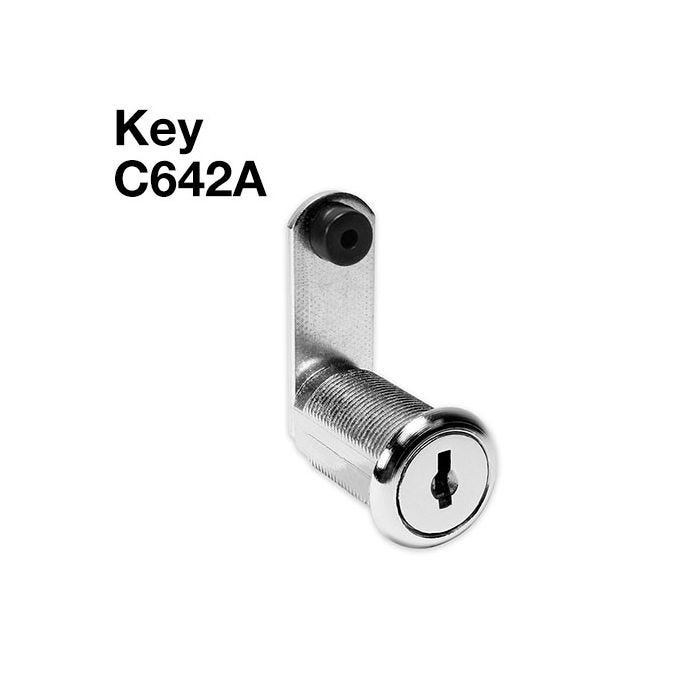

CompX NATIONAL C8052 Disc Tumbler Cam Lock | 5/8" Cylinder, 15/64" Max. Material | C642A Key (KA), Bright Nickel | C8052-C642A-14A
Only 0 left
SKU
N8052-642-14
CompX NATIONAL 5-Disc Tumbler Cylinder Cam Lock, Keyed Alike Key, Key Number: 642, Mounting Hole Size: 3/4 in Wood, 0.76 in Metal, Offset: 11/32 in, 1-1/2 in Straight, 1-1/8 in Offset L Cam, 5/8 in Straight, Offset W Cam, Maximum Latching Distance: 5/8 in, 15/64 in THK Door, Unlocking Radius: 90 deg, Unlock Turn Direction: Clockwise, Die-Cast Zinc, Bright Nickel, Flush, Lipped/Overlay Mount, 5/8 in L Cylinder, Includes: (2) C642A Keys, Trim Washer, Spur Washer (For Wood), Mounting Nut and (2) Cams, Packaging Quantity: 25/Box
| Manufacturer SKU | C8052-C642A-14A |
|---|---|
| Brand | CompX National |
| Color/Finish | Bright Nickel |
| Cylinder Length | 5/8" |
| Door Thickness | 15/64" |
| Key Number | 642 |
| Item Name | Cam Lock |
| Type | 5-Disc Tumbler Cylinder |
| Includes | (2) C642A Keys, Trim Washer, Spur Washer (For Wood), Mounting Nut and (2) Cams |
| Packaging Quantity | 25/Box |
| Mounting Hole Size | 3/4 in Wood, 0.76 in Metal |
| Material | Die-Cast Zinc |
| Key Type | Keyed Alike |
| Unlock Turn Direction | Clockwise |
| Unlocking Radius | 90 |
| Maximum Latching Distance | 5/8" |
| Cam Width | 5/8 in Straight, Offset |
| Offset | 11/32" |
