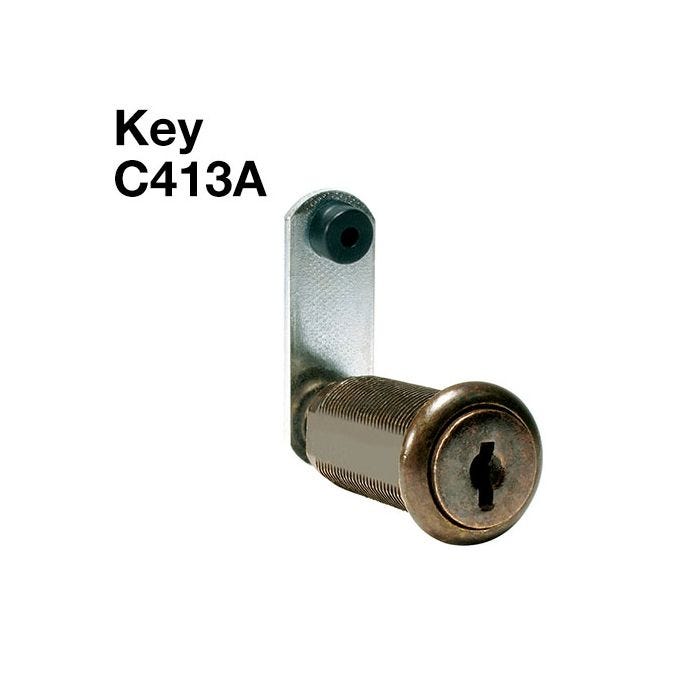

CompX NATIONAL C8053 Disc Tumbler Cam Lock | 1-3/16" Cylinder, 7/8" Max. Material | C413A Key (KA), Antique Brass | C8053-C413A-4G
SKU
N8053-413-AB
CompX NATIONAL 5-Disc Tumbler Cylinder Cam Lock, Keyed Alike Key, Key Number: 413, Mounting Hole Size: 3/4 in Wood, 0.76 in Metal, Offset: 11/32 in, 1-1/2 in Straight, 1-1/8 in Offset L Cam, 5/8 in Straight, Offset W Cam, Maximum Latching Distance: 1-3/16 in, 7/8 in THK Door, Unlocking Radius: 90 deg, Unlock Turn Direction: Clockwise, Die-Cast Zinc, Antique Brass, Flush, Lipped/Overlay Mount, 1-3/16 in L Cylinder, Includes: (2) C413A Keys, Trim Washer, Spur Washer (For Wood), Mounting Nut and (2) Cams, Packaging Quantity: 25/Box
| Manufacturer SKU | C8053-C413A-4G |
|---|---|
| Brand | CompX National |
| Color/Finish | Antique Brass |
| Cylinder Length | 1-3/16" |
| Door Thickness | 7/8" |
| Key Number | 413 |
| Item Name | Cam Lock |
| Type | 5-Disc Tumbler Cylinder |
| Includes | (2) C413A Keys, Trim Washer, Spur Washer (For Wood), Mounting Nut and (2) Cams |
| Packaging Quantity | 25/Box |
| Mounting Hole Size | 3/4 in Wood, 0.76 in Metal |
| Material | Die-Cast Zinc |
| Key Type | Keyed Alike |
| Unlock Turn Direction | Clockwise |
| Unlocking Radius | 90 |
| Maximum Latching Distance | 1-3/16" |
| Cam Width | 5/8 in Straight, Offset |
| Offset | 11/32" |
