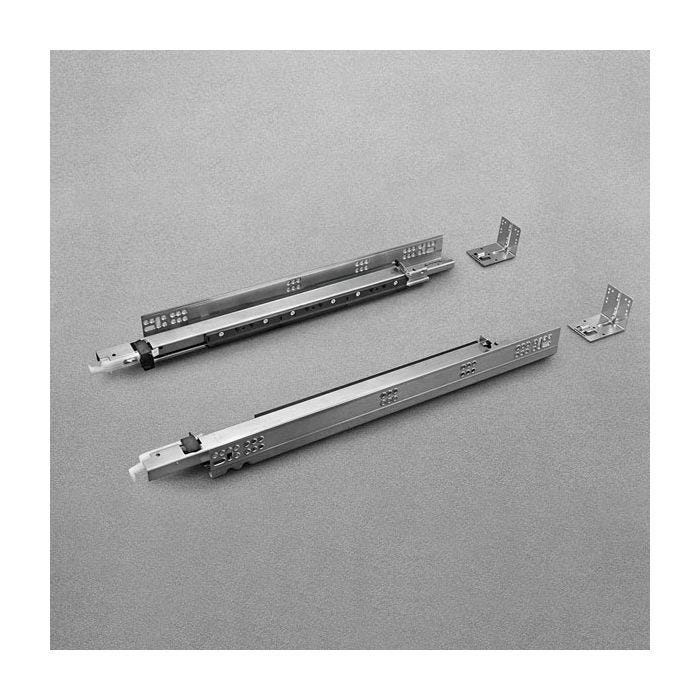

Salice F70 Futura Smove Undermount Slide | Soft Close, 15", Full Ext, 170lb | G7U6S381XXB
SKU
SAG7U6S-15-03-FF
The F70 Smove 15" heavy-duty full extension undermount slide for face frame cabinets features soft closing action with a synchronized mechanism, full-length cabinet members, and will accommodate 12mm (1/2'') to 16mm (5/8") drawer thickness. 170 lb static load capacity (154 lb dynamic) is backed by a lifetime warranty. The F70 Smove for frameless is fully adjustable. Depth and lateral adjustments are integrated in the front clip. Height adjustment is integrated into the slide. Compatible with Lineabox and wood drawer boxes.
! NOTE: Use of rear sockets while mounting to the face frame without blocking out reduces load capacity to 75 lbs.
Manufacturer SKU | G7U6S381XXB |
---|---|
Brand | Salice |
Nominal Length | 15" |
Mounting Type | Bottom, Side |
Closure Type | Smove Soft-Close |
Load Capacity | 170 lb Static, 154 lb Dynamic |
Series | F70 Smove |
Slide Length | 392mm |
Slide Extension | Full Extension |
Side Space | 3/16" (5mm) |
Packaging Quantity | 6/Box |
